SKU: 6608-201-01
€145,95
FREE SHIPPING OVER $149 IN CONT. USA

SENT
SUCCESFULLY!

We will notify you at the email address when the product is available again.

In stock

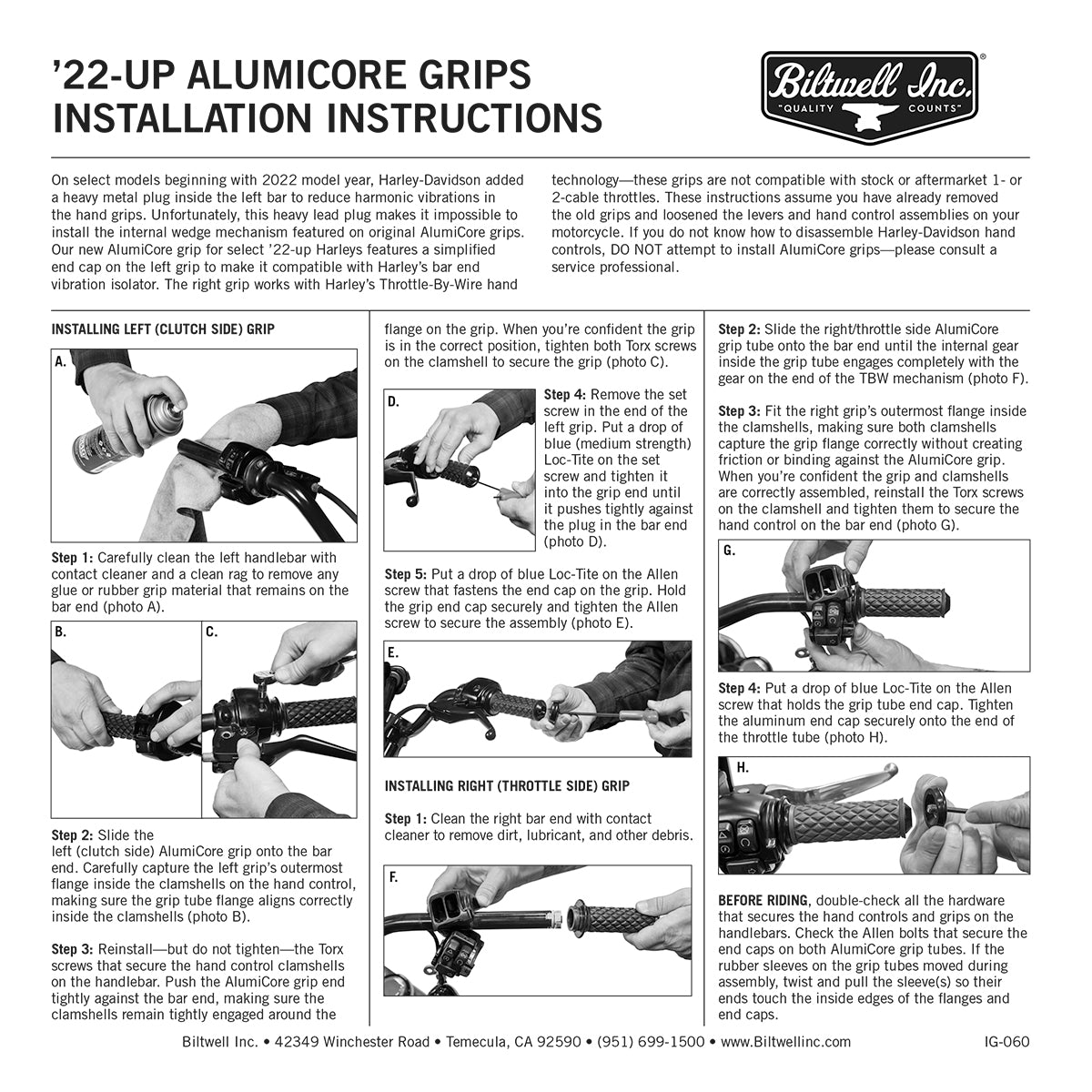

Install Guide & Dimensions
A brilliant advancement in high-performance grip design for late-model Harley-Davidson motorcycles. Available in three designs, Throttle-By-Wire, dual-cable, and custom to fit a wide range of stock and select aftermarket H-D hand controls.

Install Guide & Dimensions

AlumiCore Grip Set TBW 22+ - Black Electroplate

TECH SPECS
FITMENT
FORM & FUNCTION
  • One-piece forged, CNC lathe-turned 6061 T-6 aluminum core construction
  • TBW splined gear interface inside right grip part of the aluminum core—not a separate glued-and-screwed piece of plastic
  • Replaceable Thermoplastic Vulcanizate (TPV) rubber sleeves are soft yet durable, and highly resistant to UV
  • Removable aluminum end caps make replacing the synthetic rubber sleeves fast and easy
  • Clutch-side grip features a set screw under the end-cap to help keep grip secure on Harley Davidson models that contain an anti-vibration slug in the end of the handlebar.
  • Chrome and black electroplated finished available
  • Come stock with black TPV rubber sleeves; colored replacement sleeves also available
  • Available in 3 designs: H-D TBW, dual-cable, and custom

Fitment For ’22+ AluminCore Grips

  • 2018 FLFBS ANX 1YSK FAT BOY 114 ANNIVERSARY
  • 2018 - 2020 FLFB 1YFJ FAT BOY
  • 2018 - 2023 FLFBS 1YGK FAT BOY 114
  • 2018, 2020  FLFBSANV 1YRK FAT BOY 114 ANNIVERSARY
  • 2023  FLFBSANV 1BBK FAT BOY ANNIVERSARY
  • 2018, 2019  FXBR 1YEJ BREAKOUT
  • 2023  FXBR 1YEZ BREAKOUT
  • 2018 - 2022 FXBRS 1YHK BREAKOUT 114
  • 2018  FXBRS ANX 1YTK BREAKOUT 114 ANNIVERSARY
  • 2018 - 2020 FXFB 1YKJ FAT BOB
  • 2018 - 2023 FXFBS 1YLK FAT BOB 114
  • 2022, 2023 FXLRS 1YWZ LOW RIDER S
  • 2022, 2023 FXLRST 1YXZ LOW RIDER ST
  • 2022  FXRST 1YZZ LOW RIDER EL DIABLO

IMPORTANT: Certain make and model year Harley-Davidsons feature a lead insert inside the left bar end. If your Harley has this component, please select our ’22-up AlumiCore grip style. The fitment list provided shows the motorcycles and model years where this lead insert appears most frequently, but  be aware: The Motor Company has been known to install different handlebars on the same make and model year. Best practice: remove the left grip on your motorcycle and look for the lead insert in the bar end before selecting the AlumiCore grip for your upgrade.

Note: If stock bars are replaced, or anti-vibration plugs added then the fitment may change

AlumiCore grips are available in three styles:

  • Throttle-by-Wire (TBW) for select model-year Harley-Davidson motorcycles featuring this technology
  • Dual-Cable for conventional H-D hand controls
  • Custom for replacing the stock grips and switch pods on Harleys spec’ed with dual-cable throttles

AlumiCore grips ARE NOT designed for nor will they fit any other brand of OE or aftermarket hand control—DO NOT try to install them on any non-compatible brand or model of motorcycle.
